Open GL C Renderer & Voxel Engine
The OpenGL C renderer is one of my projects that I am most proud of.
A common trend among developers on YouTube is recreating the video game Minecraft in various different methods. This inspired me to give it a try with my own twist: to write it from complete scratch in 100% C (most engines using OpenGL are written in C++) with OpenGL.
While I have worked in C and C++ in the past, I chose C not only just for the challenge, but also to help build skills in memory management and overall project management without the conveniences of an object oriented language.
How It Works
While the rendering loop follows standard OpenGL practices (referenced from Learn OpenGL - Graphics Programming), several elements work together to make this happen:
float lastFrame = 0.0f; while(!glfwWindowShouldClose(w->skeleton->window)) { glClearColor(SKYBOX_COLOR_R / 255.0f, SKYBOX_COLOR_G / 255.0f, SKYBOX_COLOR_B / 255.0f, SKYBOX_COLOR_A / 255.0f); glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
float currentFrame = glfwGetTime(); float deltaTime = currentFrame - lastFrame; lastFrame = currentFrame; processInput(w->skeleton->window, deltaTime); //Render Commands mat4 viewMatrix; GetViewMatrix(camera, viewMatrix);
//CalculateFrameRate();
unsigned int viewLoc = glGetUniformLocation(shader_program, "view"); glUniformMatrix4fv(viewLoc, 1, GL_FALSE, viewMatrix[0]);
unsigned int projLoc = glGetUniformLocation(shader_program, "projection"); glUniformMatrix4fv(projLoc, 1, GL_FALSE, globalProjectionMatrix);
float green = sin(deltaTime) / 2.0f + 0.5f; int vertexColorLocation = glGetUniformLocation(shader_program, "vertexColor"); glUniform4f(vertexColorLocation, 0.0f, green, 0.0f, 1.0f); //Draw Code Here DrawWorld(world, shader_program, textureAtlas); //
glfwSwapBuffers(w->skeleton->window); glfwPollEvents(); }However, the more interesting aspect of this project is the voxel renderer. The general concept is designed like so:
The game generates a world made of chunks -> chunks are generated made of cubes -> cubes are generated with hardcoded vertices and indices
Lets take a look at cube.c:
float cubeVerts[] ={ // Front Face -0.5f, -0.5f, -0.5f, 1.0f, 0.0f, 0.5f, -0.5f, -0.5f, 0.0f, 1.0f, 0.5f, 0.5f, -0.5f, 1.0f, 0.0f, -0.5f, 0.5f, -0.5f, 0.0f, 1.0f,
// Back Face -0.5f, -0.5f, 0.5f, 1.0f, 0.0f, 0.5f, -0.5f, 0.5f, 0.0f, 1.0f, 0.5f, 0.5f, 0.5f, 1.0f, 0.0f, -0.5f, 0.5f, 0.5f, 0.0f, 1.0f,};
unsigned int cubeIndices[] ={ // Front face 0, 1, 2, 2, 3, 0,
// Back face 4, 5, 6, 6, 7, 4,
// Left face 0, 3, 7, 7, 4, 0,
// Right face 1, 2, 6, 6, 5, 1,
// Bottom face 0, 1, 5, 5, 4, 0,

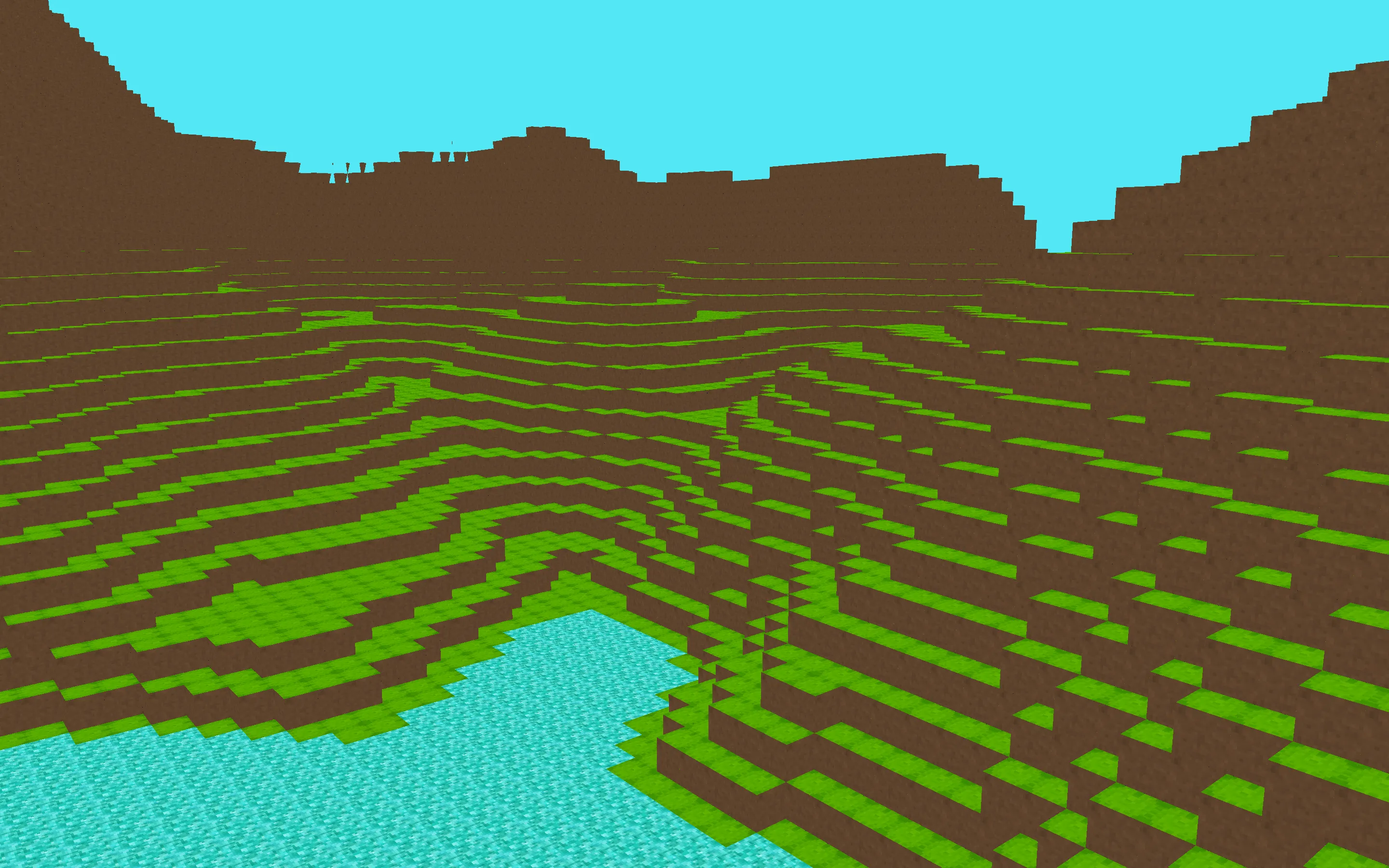

// Top face 2, 3, 7, 7, 6, 2,};The chunk then places these cubes based on perlin noise to give the illusion of mountains and lakes that are completely random, allowing for infinite possibilities when generating a world. Each chunk also has a random chance of being a type of “biome” that has it’s own unique textures. chunk.c is very long, but here is the CreateChunkMesh(), which implements face culling by only rendering faces adjacent to air:
void CreateChunkMesh(Chunk* chunk){ for (int x = 0; x < CHUNK_SIZE; x++) { for (int y = 0; y < CHUNK_HEIGHT; y++) { for (int z = 0; z < CHUNK_SIZE; z++) { BlockType currentBlock = chunk->blocks[x][y][z].type;
if (currentBlock != AIR) { if (x == CHUNK_SIZE - 1 || chunk->blocks[x + 1][y][z].type == AIR) AddFace(chunk, x, y, z, DIRECTION_X_POS); if (x == 0 || chunk->blocks[x - 1][y][z].type == AIR) AddFace(chunk, x, y, z, DIRECTION_X_NEG); if (y == CHUNK_HEIGHT - 1 || chunk->blocks[x][y + 1][z].type == AIR) AddFace(chunk, x, y, z, DIRECTION_Y_POS); if (y == 0 || chunk->blocks[x][y - 1][z].type == AIR) AddFace(chunk, x, y, z, DIRECTION_Y_NEG); if (z == CHUNK_SIZE - 1 || chunk->blocks[x][y][z + 1].type == AIR) AddFace(chunk, x, y, z, DIRECTION_Z_POS); if (z == 0 || chunk->blocks[x][y][z - 1].type == AIR) AddFace(chunk, x, y, z, DIRECTION_Z_NEG); } } } } glBindVertexArray(chunk->vao); glBindBuffer(GL_ARRAY_BUFFER, chunk->vbo); glBufferData(GL_ARRAY_BUFFER, chunk->verticeCount * sizeof(GLfloat), chunk->vertices, GL_STATIC_DRAW); glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, chunk->ebo); glBufferData(GL_ELEMENT_ARRAY_BUFFER, chunk->indicesCount * sizeof(GLuint), chunk->indices, GL_STATIC_DRAW);
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void*)0); glEnableVertexAttribArray(0);
glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void*)(3 * sizeof(float))); glEnableVertexAttribArray(1);
glBindBuffer(GL_ARRAY_BUFFER, 0); glBindVertexArray(0);}These chunks are created in world.c, or more specifically in CreateWorld():
World* CreateWorld(int seed){ World* world = malloc(sizeof(World)); float* worldNoise = GenerateWorldNoise(seed); for(int x = 0; x < WORLD_SIZE; x++) { for(int z = 0; z < WORLD_SIZE; z++) { vec3 chunkLocation = {x * CHUNK_SIZE, 0, z * CHUNK_SIZE}; float* noise = malloc(CHUNK_SIZE * CHUNK_SIZE * sizeof(float)); for(int cz = 0; cz < CHUNK_SIZE; cz++) { for(int cx = 0; cx < CHUNK_SIZE; cx++) { int worldIndex = ((z * CHUNK_SIZE + cz) * WORLD_SIZE * CHUNK_SIZE) + (x * CHUNK_SIZE + cx); noise[cz * CHUNK_SIZE + cx] = worldNoise[worldIndex]; } } CreateBiomes(); world->chunks[x][z] = CreateChunk(chunkLocation, noise); free(noise); } } free(worldNoise); FreeBiomes(); return world;}This world is then passed into the buffer loop to be drawn, as shown earlier.
While this is a relative simplified overview of how the voxel engine works, it was not without it’s headaches.
The Challenges
View Matrix
While this was not my first attempt at creating a graphics engine, it was my first time doing it from scratch like this and my first time creating one in 3D.
One of the biggest challenges of making a 3D rendering engine is actually just making it 3D. Something I had never really thought of before this project, but is obvious in retrospect, is that making 3D graphics appear on a 2D screen is a very mathematically involved process. 3D graphics are not as simple as setting a variable to true… shockingly.
The heavy lifting in the illusion of 3D graphics is done by what is called the “View Matrix”, which is a representation of a “camera” in a 3D space.
The view matrix for this project is in input.c:
void UpdateCameraVectors(Camera* camera){ vec3 front; front[0] = cos(glm_rad(camera->yaw)) * cos(glm_rad(camera->pitch)); front[1] = sin(glm_rad(camera->pitch)); front[2] = sin(glm_rad(camera->yaw)) * cos(glm_rad(camera->pitch)); glm_normalize(front); glm_vec3_copy(front, camera->front);
glm_cross(camera->front, camera->worldUp, camera->right); glm_normalize(camera->right); glm_cross(camera->right, camera->front, camera->up); glm_normalize(camera->up);}
void GetViewMatrix(Camera camera, mat4 dest){ vec3 center; glm_vec3_add(camera.position, camera.front, center); glm_lookat(camera.position, center, camera.up, dest);}The glm_lookat function constructs a view matrix that transforms world coordinates to camera space using:
-
Camera position (eye)
-
Target point (center = position + front)
-
Up vector (up)
Euler angles (yaw/pitch) are converted to a directional vector using spherical coordinates
Shared Noise
One glaring problem I had with world generation was the glaring seams between chunks. Due to my bottom-up approach of designing the world generation, I reached an issue when generating worlds where chunks would would have vastly different height noise, ruining the illusion of a connected world. At the time, every individual chunk generated it’s own noise, so the solution was relatively simple: world noise.
Rather than generate noise per chunk, I changed it generate a larger noise for the entire world (based on height and width of chunk amounts) and have each chunk use a portion of that noise, giving the illusion of connected noise between chunk seams.
float GetCombinedNoise(fnl_state* noise, float x, float y){ float totalNoise = 0; float amp = 0.5f; float frequency = 1.0f; float maxAmplitude = 0.0f;
for(int i = 0; i < NOISE_OCTAVES; i++) { totalNoise += fnlGetNoise2D(noise, x * frequency, y * frequency) * amp; maxAmplitude += amp;
amp *= PERSISTENCE; frequency *= 2; }
return totalNoise / maxAmplitude;}
float* GenerateWorldNoise(int seed){ float* noiseData = malloc(WORLD_SIZE * CHUNK_SIZE * WORLD_SIZE * CHUNK_SIZE * sizeof(float)); fnl_state noise = fnlCreateState(); fnl_state lake_noise = fnlCreateState();
noise.seed = seed; lake_noise.seed = seed + 1;
noise.noise_type = FNL_NOISE_PERLIN; lake_noise.noise_type = FNL_NOISE_PERLIN;
int index = 0; for(int y = 0; y < WORLD_SIZE * CHUNK_SIZE; y++) { for(int x = 0; x < WORLD_SIZE * CHUNK_SIZE; x++) { float combinedNoise = GetCombinedNoise(&noise, x, y); float lakeNoise = GenerateLakeNoise(&lakeNoise, x, y);
if(lakeNoise < LAKE_THRESHOLD) { combinedNoise -= DEPTH_MOD * (LAKE_THRESHOLD - lakeNoise); } noiseData[index++] = combinedNoise; } } return noiseData;}Conclusion
This was by far one of the most challenging and enjoyable projects I have ever worked on. I learned a lot in regards to memory management, 3D transformation math, 3D graphics, OpenGL, performance optimization, and overall project management.
